MOES Tuya ZigBee Smart Electric Curtain Robot Timing Auto Opener Closer Light Sensor App Remote Control Support Alexa GoogleHome

MOES Tuya ZigBee Smart Electric Curtain Robot Timing Auto Opener Closer Light Sensor App Remote Control Support Alexa GoogleHome

BY MOES

Smart Curtain Robot

Flexible and Easy Installation

Light Sensor Allows Smart Linkage, to Realize Curtains Automation

Adaptable for Multiple Curtain Rails

APP Control with Percentage Set

Voice Control

Notice before purchase

NOTE: ZigBee gateway is required, please purchase in addition.

Timing Function

With our curtain robot, you can easily set timers to automatically adjust according to your daily routine, whether in the morning or at night, creating your own personal space.

Long Battery Life of 120 Days

Our curtain robot comes with a powerful battery that offers up to 120 days of runtime, reducing the hassle of frequent replacing and making smart home living more convenient and worry-free.

8KG Load: Small Size, Big Power

Our curtain robot, though compact, boasts an impressive 8 kg load capacity, ensuring smooth operation of your curtains and handling various materials and sizes with ease.

Note:The picture is for reference only, the actual weight of the curtains shall prevail.

Pull-to-start, Stop-on-obstacle

With the manual pull-to-start design, simply give it a gentle pull to activate the curtain robot; additionally, the intelligent stop-on-obstacles feature ensures safe and convenient use.

Smart Linkage Builds Unified Smart Home

Seamlessly integrate with your smart home ecosystem; this intelligent curtain motor can be linked with other smart devices like door locks, automatically opening your curtains as you enter the house for a truly cohesive and convenient living experience.

Switchable Moving Direction

Engineered for flexibility, this smart curtain motor supports both left and right mounting, and its direction can be easily reversed through the app, ensuring seamless installation and operation regardless of your setup.

Solutions for One-way Curtain/Two-way Curtain

For different needs, we offer solutions for both single-track and double-track curtains: if you have a single-track curtain, one curtain robot is all you need for smart control; for double-track curtains, we recommend purchasing two robots for optimal performance.

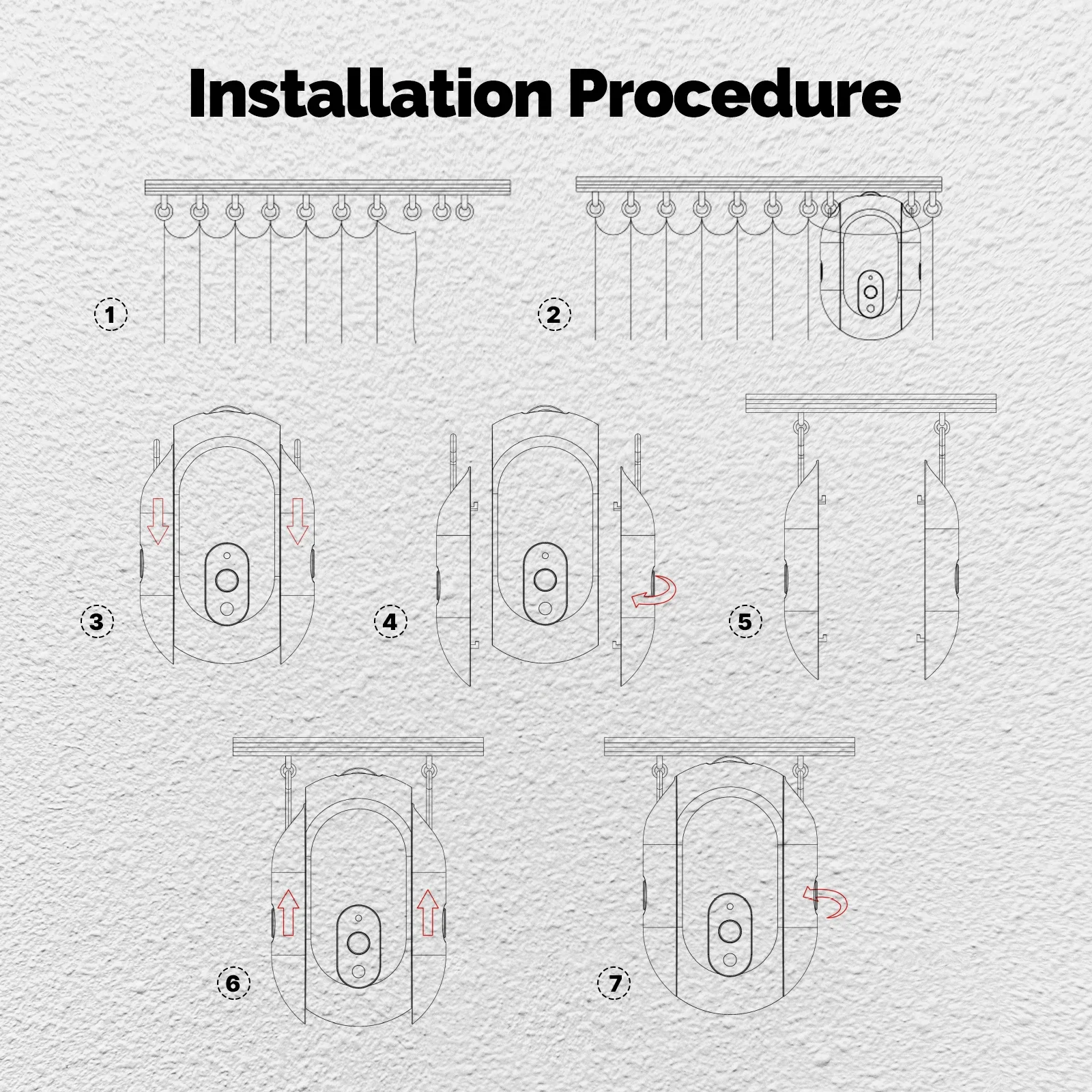

Installation Procedure

1. Before installation, clean and dry the track, then remove the curtain hooks from the next installation location.

2. Hang the removed hooks in front and leave two spaces at the installation location for installing the curtain robot.

3. Push the robot body down and remove the hook accessories on both sides.

4. Use the knobs on the side to adjust the hooks to the top.

5. Install the hooks on both sides to the corresponding curtain hook rings.

6. Combine the robot body with the hooks on both sides.

7. Make the top roller of the curtain robot close to the track by turning the knobs on both sides.

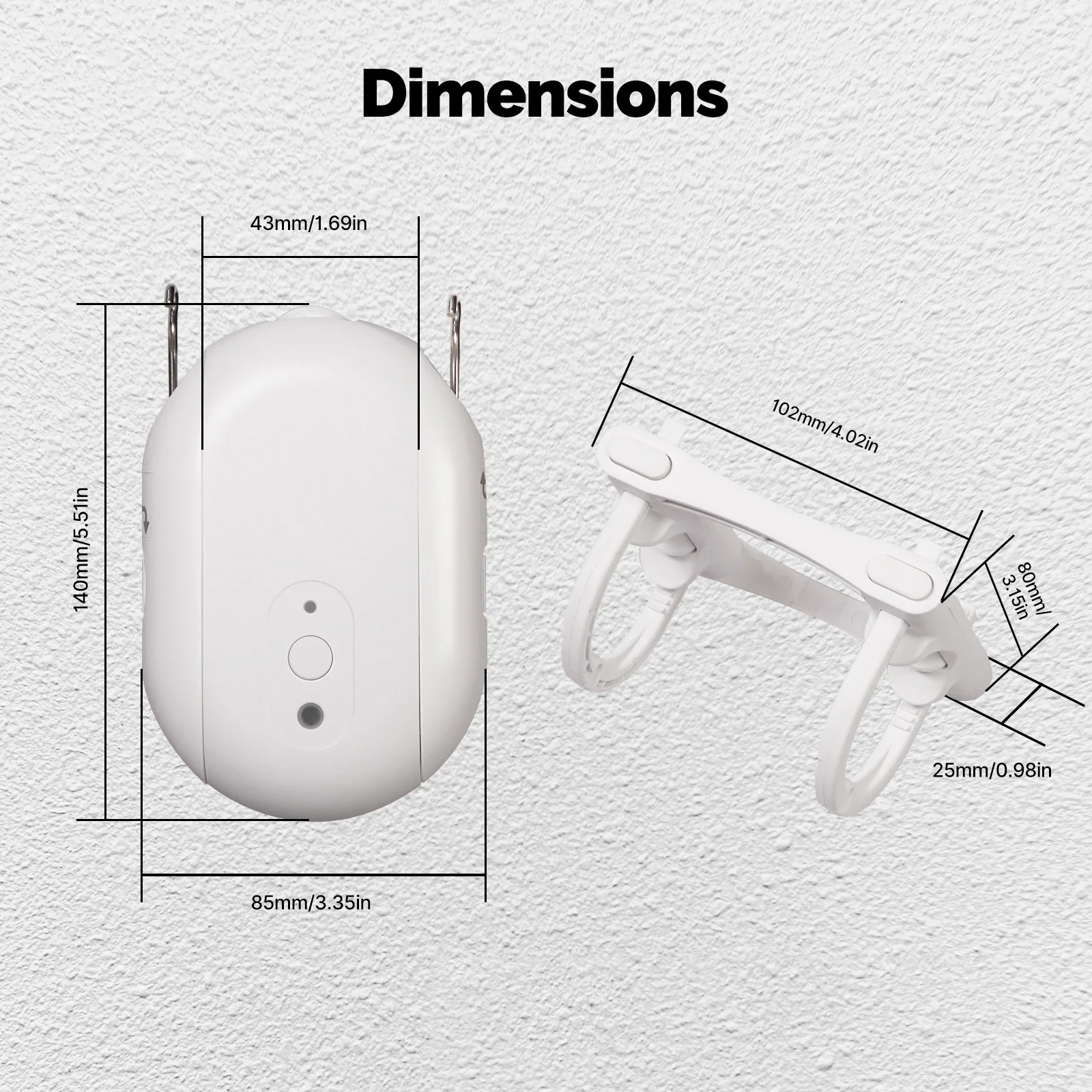

Dimensions

Technical Specifications

Dimensions: 95x43x140 mm

Wireless protocol: Zigbee 3.0

Battery type: 3*AA batteries 1.5V

Rated current: 1.5A

Rated power: 6.75W

Output speed: 120r/min

Moving speed: 17cm/s

Working temperature: 0°C~45°C

Working humidity: 0~95%RH without condensation

Maximum weight of curtains that can be pushed: 8kg

Packing List

Curtain robot *1

U-shaped slide rail for Roman rail (Optional) *1

Manual *1
